LG Washing Machine Display Not Working? Here's When You Need a PCB Assembly Replacement

Is your LG washing machine's display blank, flickering, or completely unresponsive when you press the buttons? Before assuming the entire machine has failed, the issue often comes down to one specific component: the LG washing machine PCB assembly. This is the circuit board that controls the display, processes your button inputs, and manages wash cycle settings and when it starts failing, the display panel is usually the first place it shows.

Buy LG Washing Machine PCB Assembly, Display here

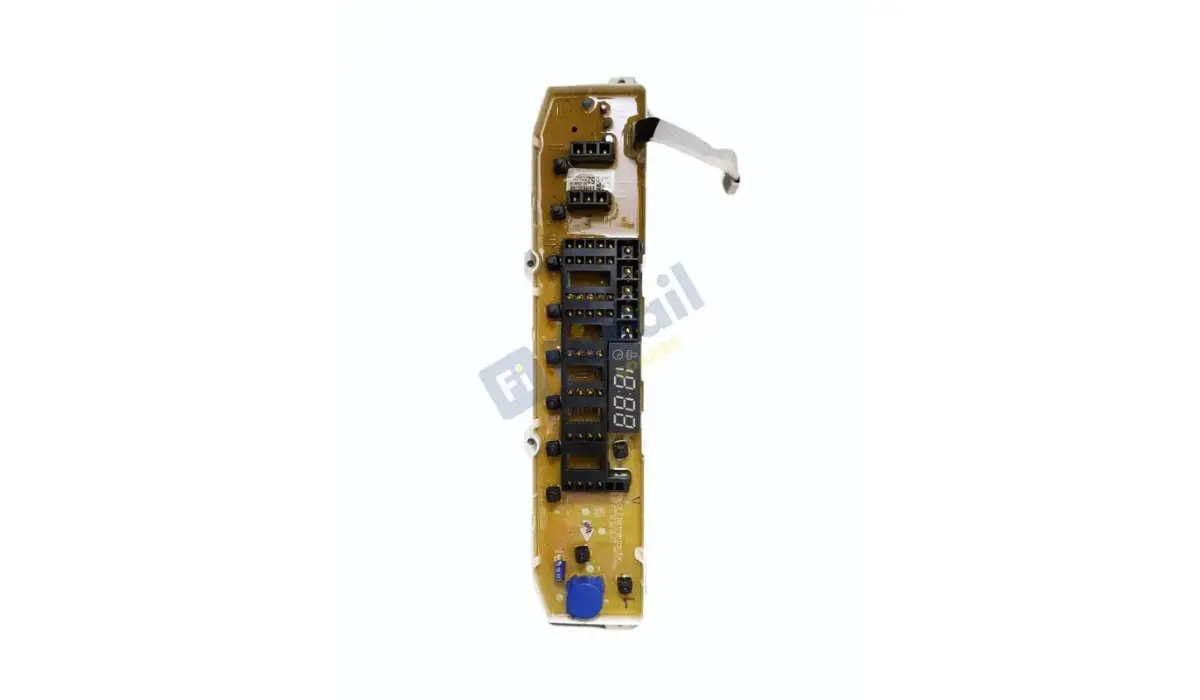

What the PCB Assembly Actually Does

The PCB (printed circuit board) assembly in an LG washing machine is essentially the control center of the appliance. It receives input from the button panel, sends signals to the motor and heating element, and drives the display that shows cycle time, settings, and error codes. Because the display is the most visible part of this system, most PCB-related faults show up there first even if the underlying issue is with signal processing rather than the screen itself. This is why a "display not working" complaint is almost always really a PCB assembly question.

Common Signs Your LG Washing Machine PCB Assembly Needs Attention

1. Blank Display With No Response

If the display shows nothing at all, even though the machine has power, this usually points to the PCB assembly rather than a power supply issue, assuming you've already confirmed the machine is properly plugged in and the socket works.

2. Flickering or Dim Display

An inconsistent display that flickers on and off, or dims unexpectedly during a cycle, often indicates a failing connection within the PCB assembly rather than a bulb or backlight issue, since most LG models use an integrated display rather than a separate light source.

3. Buttons Not Responding

If pressing buttons produces no reaction, or only some buttons work while others don't, the input processing on the PCB assembly is a likely cause, especially if this happens consistently rather than intermittently.

4. Display Not Showing Time or Cycle Progress

A display that powers on but fails to show accurate wash time or cycle status usually indicates a partial fault in the board's processing function, rather than a complete failure.

5. Random or Incorrect Error Codes

If your machine is showing error codes that don't match any actual issue with water, drainage, or load balance, the PCB assembly itself may be generating faulty signals.

How to Confirm It's the PCB Assembly Before Replacing It

1. Check the power source first — Confirm the socket works and the power cable is fully connected.
2. Reset the machine by unplugging it for a few minutes, since some display glitches resolve after a full power reset.
3. Note the exact symptom — Blank display, flickering, unresponsive buttons, or incorrect codes each point toward slightly different fault areas within the board.
4. Check for visible damage if you're comfortable opening the panel; burn marks, corrosion, or loose connectors on the board are strong indicators of a genuine PCB fault.
5. Compare against your model number before ordering a replacement, since PCB assemblies vary across LG's washing machine ranges and aren't interchangeable between models.

A Practical Tip From Experience

A detail that's easy to overlook: display issues caused by voltage fluctuations or an unstable power supply can look identical to a genuine PCB fault, especially in areas with frequent power cuts or older home wiring. Before ordering a replacement PCB assembly, it's worth testing the machine after a full reset and, if possible, on a different socket this simple check can save you from replacing a board that wasn't actually the problem.

Why Source Your LG Washing Machine PCB Assembly From Fixail Spares

Getting the right PCB assembly matters more than people expect, since LG uses different board designs across washing machine series, and a mismatched part won't function correctly even if it looks similar. At Fixail Spares, LG washing machine PCB assembly listings are matched against specific model numbers, with clear compatibility details on every product page, so you're ordering the exact board your machine needs rather than guessing based on appearance.

Frequently Asked Questions

How do I know if my LG washing machine's display problem is the PCB assembly or something simpler?

Start with a full power reset and check the socket and cable. If the display remains blank, unresponsive, or shows incorrect information after that, the PCB assembly is the most likely cause.

Can a power cut damage the PCB assembly?

Yes. Sudden voltage fluctuations or frequent power cuts can damage sensitive circuit components over time, which is one of the more common causes of PCB failure in washing machines.

Is the PCB assembly the same as the control board?

Yes, these terms are generally used interchangeably; both refer to the circuit board that manages display, button input, and cycle control in the machine.

How much does replacing an LG washing machine PCB assembly typically cost compared to other repairs?

Costs vary by model, but a PCB assembly replacement is generally more affordable than motor or drum repairs, since it involves swapping a single component rather than mechanical parts.
