LG Washing Machine PCB Assembly,Display

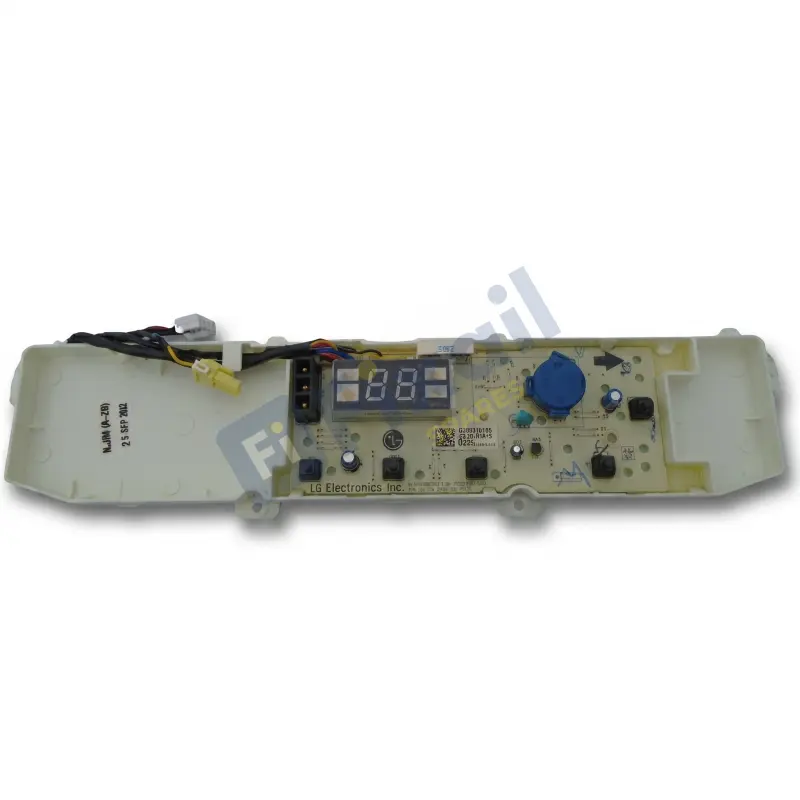

The LG Front-Load Washing Machine Display & User Interface PCB (Part Numbers: EBR87100881 / EBR89401002) is an authentic original equipment manufacturer (OEM) replacement electronic control board designed for LG 6–8 kg Direct Drive front-load washing machines (2019–2022+ series). Mounted directly behind the front control console, this board houses the digital LED readout, cycle status indicators, touch/push buttons, and selector inputs. It interprets user commands and communicates cycle configurations directly to the main power inverter PCB to ensure smooth cycle advancement.

Key Features

• Dual OEM Interchangeability: Direct factory interchange between part numbers EBR87100881 and EBR89401002 with identical firmware and wiring compatibility.

• Integrated Digital LED Display & Indicators: Powers clear cycle-time readouts, temperature/spin selections, and error code alerts.

• Resin-Coated Circuit Protection: Moisture-resistant conformal coating shields micro-controllers and solder traces from humid laundry environments.

• Factory Polarized Multi-Pin Headers: Features pre-formed keyed connector headers for plug-and-play ribbon cable integration.

Benefits

• Solves unresponsive front-panel buttons/dial selectors, blank or flickering LED readouts, display error codes, or failure to initiate and advance wash cycles.

• Restores complete user control over specialized wash programs, temperature settings, and spin speeds.

• Direct OEM replacement ensures precise fitment into console retaining clips without modification.

Applications

Designed specifically for 2019–2022+ LG 6–8 kg Direct Drive front-load washing machines requiring part number EBR87100881 or EBR89401002.

What's Included

• 1 x Genuine LG Front-Load Washer Display & Control PCB Module (EBR87100881 / EBR89401002)

Usage Instructions

1. Unplug the washing machine from the main AC electrical outlet and shut off water supply taps before servicing.

2. Remove the top cabinet cover and slide out the detergent dispenser drawer.

3. Unscrew the front control console fasteners and carefully unclip the console panel.

4. Disconnect the multi-pin wiring harnesses and ribbon cables from the existing display PCB.

5. Release the plastic retaining tabs to remove the old board.

6. Snap the new LG EBR87100881 / EBR89401002 display board into the console housing, reconnect all wiring plugs securely, reattach the console and top cover, and run a test cycle.

Safety Instructions

• Electrostatic Sensitive Device (ESD): Always disconnect main AC power and handle the PCB by its edges to prevent electrostatic component damage.

Care Instructions

• Keep the board dry and ensure the console housing seal is clean during installation to prevent moisture ingress.

Technical Specifications

Attribute	Specification
Brand	LG
Model / Part Numbers	EBR87100881 / EBR89401002 (Interchangeable)
Component Type	Front-Load Washing Machine User Interface Display / Control PCB
Appliance Type	Front-Load Direct Drive Washing Machines (6–8 kg, 2019+)
Mounting Type	Snap-In Front Console Retainer Mount
Package Contents	1x Washer Display PCB Module
