LG Refrigerator Ice Bucket

The LG Refrigerator Spaceplus Ice System Storage Bucket & Dispenser Auger Assembly (Part Number: AKC74069803) is an authentic original equipment manufacturer (OEM) replacement component designed for LG Side-by-Side, French-Door, and Multi-Door refrigerators equipped with the slim door-mounted Spaceplus ice maker system. Mounted directly inside the freezer door compartment beneath the ice maker module, this multi-component bucket stores harvested ice cubes and houses the motorized auger shaft that drives ice forward into the external door dispenser chute.

Key Features

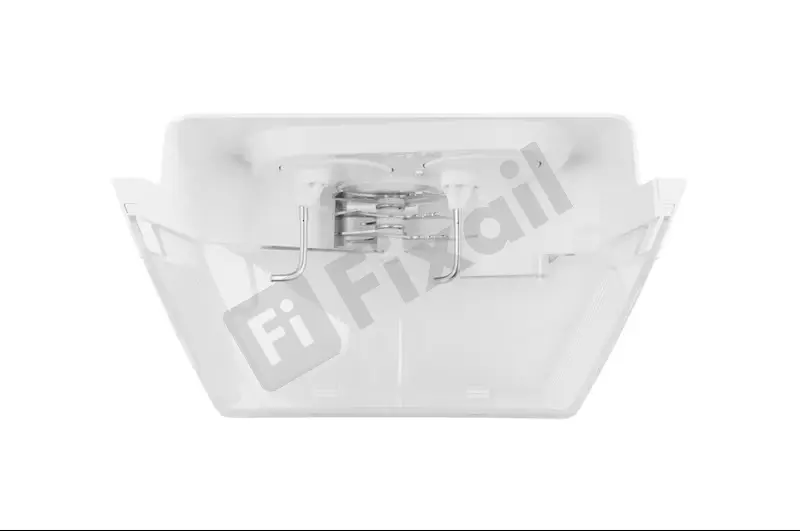

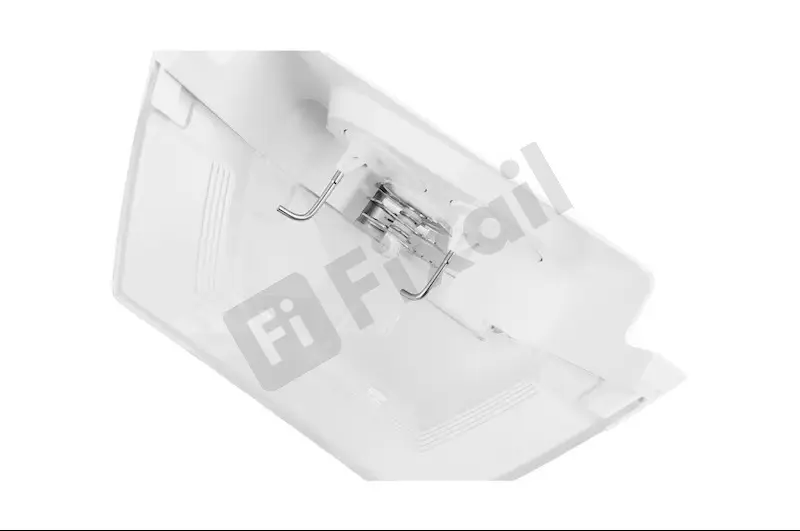

• Integrated Heavy-Duty Ice Auger & Crusher: Built with a reinforced internal rotating auger helix and stainless steel crushing blades that drive and dispense whole or crushed ice on demand.

• Cold-Resistant Impact Thermoplastic: Molded from heavy-gauge, food-grade polymer engineered to resist thermal stress and sub-zero temperatures without cracking, warping, or jamming.

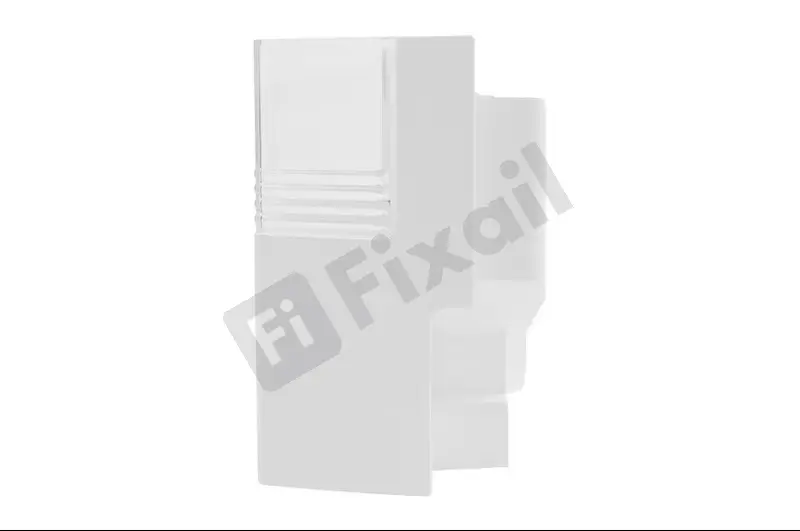

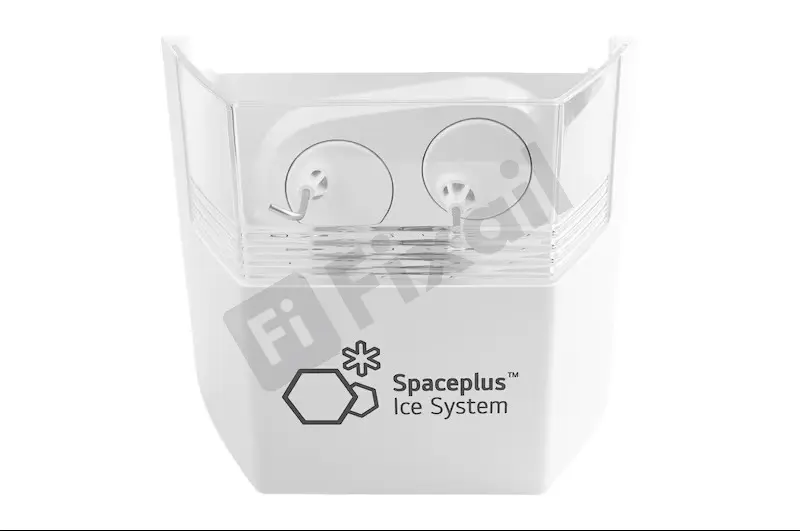

• Clear Upper Sight Window: Features a transparent upper housing that allows quick monitoring of stored ice levels without opening the container.

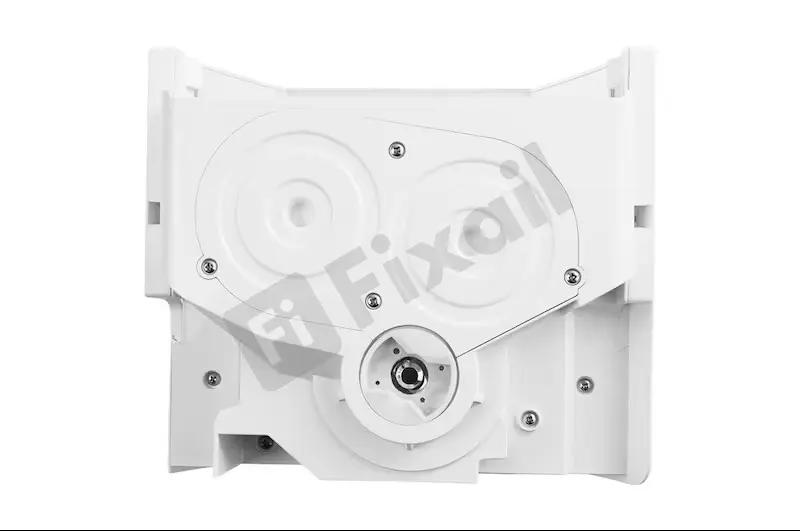

• Direct-Drive Rear Motor Coupler: Precision rear drive fork aligns seamlessly with the internal freezer door auger motor for instantaneous torque transfer.

Benefits

• Solves ice dispenser not delivering ice, stripped auger gears, cracked/leaking ice bucket housing, or continuous ice clumping in the door chute.

• Direct OEM replacement ensures factory fitment (300 x 265 x 260 mm) inside slim Spaceplus door compartments with zero modification needed.

• Restores hands-free external water and ice dispensing functionality.

Applications

Designed specifically for select LG Side-by-Side, French-Door, and Multi-Door refrigerator models equipped with the Spaceplus Ice System requiring part number AKC74069803 (Dimensions: 300 mm W x 265 mm H x 260 mm D).

What's Included

• 1 x Genuine LG Spaceplus Ice Storage Bucket & Auger Assembly (AKC74069803)

Usage Instructions

1. Open the freezer door fully to access the Spaceplus ice compartment.

2. Locate the release latch on the front or bottom of the existing ice bucket assembly.

3. Press the release tab, lift the old bucket upward slightly, and pull it straight out of the door housing.

4. Clear any loose ice cubes, frost, or debris from the auger motor drive pocket.

5. Align the rear drive coupler of the new LG AKC74069803 ice bucket with the motor drive yoke inside the door cavity.

6. Push the bucket straight in and downward until the locking mechanism clicks securely into place.

Safety Instructions

• Plastic & Mechanical Safety: Never insert fingers, spatulas, or metal utensils into the auger mechanism while the bucket is installed in the door.

Care Instructions

• Allow the cold plastic bucket to reach room temperature before hand washing with lukewarm water and mild dish soap to avoid thermal shock cracking.

Technical Specifications

Attribute	Specification
Brand	LG
Model / Part Number	AKC74069803
Component Type	Refrigerator Spaceplus Ice Storage Bucket / Auger Dispenser Assembly
Dimensions (W x H x D)	300 x 265 x 260 mm
Net Weight	1540 g (1.54 kg)
Material	Cold-Resistant Polymer with Stainless Steel Auger / Crusher Components
Color / Finish	White Housing with Clear Transparent Upper Window
Package Contents	1x Complete Ice Storage Bucket Assembly
