LG Air Conditioner Cassette Air Conditioner Remote Controller

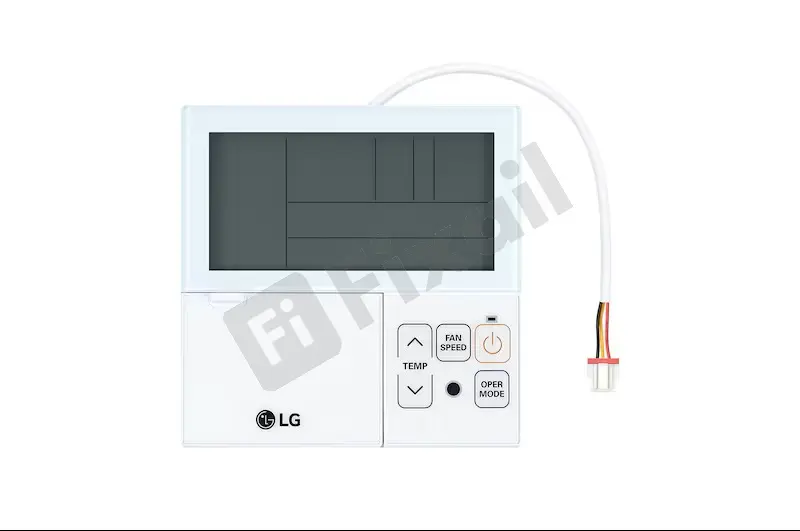

The LG Cassette Air Conditioner Wired Wall Remote Controller (Part Number: AKB75075701) is an authentic original equipment manufacturer (OEM) replacement central control interface designed for LG ceiling cassette, ducted, and light commercial HVAC systems. Connected directly to the indoor unit control PCB via a low-voltage communication harness, this wall-mounted thermostat provides complete management over room temperature adjustments, operation modes (Cool, Heat, Fan, Auto, Dehumidification), multi-stage fan speeds, and airflow vane positioning. Its slim rectangular form factor (136 x 120 x 16 mm) and digital interface make it ideal for offices, retail stores, and modern residential spaces.

Key Features

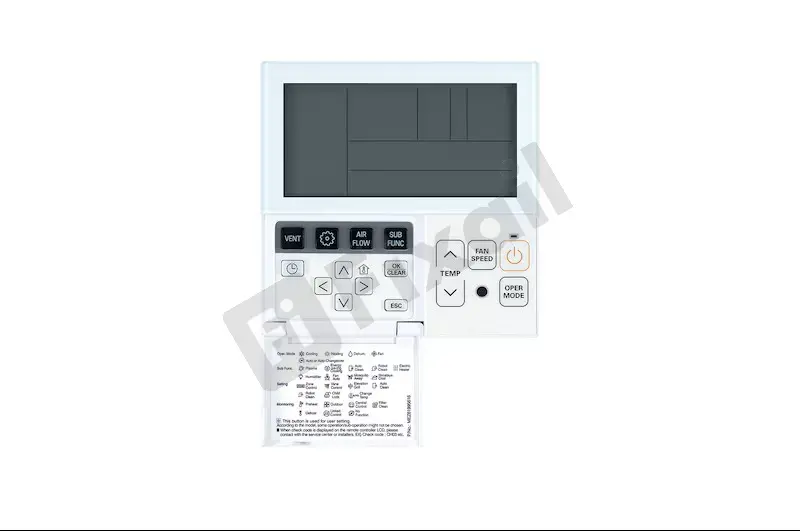

• High-Visibility Digital LCD Display: Shows active room temperature, target setpoints, fan speeds, diagnostic error codes, and operational modes at a glance.

• Full-Function Keypad Interface: Dedicated tactile push-buttons provide responsive adjustment for Temperature (Up/Down), Fan Speed, Operational Mode, and Power.

• Pre-Wired 100 cm Communication Cable: Includes an integrated low-voltage wiring harness with a polarized plug-and-play terminal block for direct connection to indoor unit PCB headers.

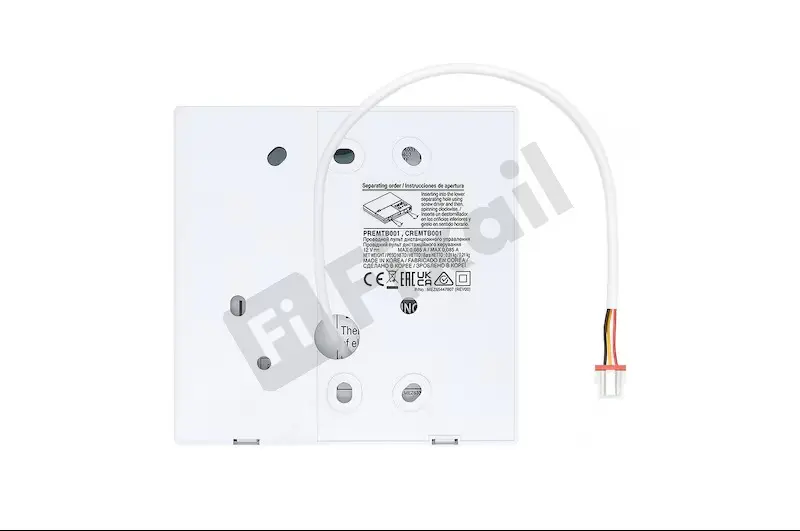

• Flush Wall-Mount Backplate: Square/rectangular housing engineered with standard mounting screw holes for clean surface attachment on drywall or standard electrical back boxes.

Benefits

• Solves unresponsive wall thermostats, blank or scrambled LCD readouts, broken keypad buttons, or severed communication wiring.

• Eliminates intermittent signal loss common with handheld infrared remotes by maintaining a direct hardwired connection.

• Direct OEM replacement guarantees factory communication protocols, voltage compatibility, and mounting alignment with LG cassette systems.

Applications

Designed specifically for select LG ceiling cassette, ducted, and light commercial air conditioning units requiring wired controller part number AKB75075701.

What's Included

• 1 x Genuine LG Cassette AC Wired Remote Controller with 100 cm Cable (AKB75075701)

Usage Instructions

1. Turn off the air conditioner and disconnect main electrical power at the circuit breaker before installation.

2. Unclip the front faceplate of the old controller to access the wall-mounting screws.

3. Unscrew the unit from the wall and disconnect the communication cable from the terminal block or wiring run.

4. Secure the rear sub-base of the new LG AKB75075701 controller to the wall using mounting screws.

5. Connect the polarized communication plug to the matching PCB/wiring harness extension header.

6. Snap the front display housing onto the baseplate, restore electrical power, and configure initial temperature and mode settings.

Safety Instructions

• Electrical Safety: Always isolate main power at the breaker panel before handling internal wiring or connecting terminal plugs.

• Operates on low-voltage DC communication signals; never connect directly to 220–240V AC mains power.

Care Instructions

• Clean the exterior casing and display with a soft, dry microfiber cloth; avoid spraying liquid cleaners directly onto the screen or buttons.

Technical Specifications

Attribute	Specification
Brand	LG
Model / Part Number	AKB75075701
Component Type	Ceiling Cassette & Ducted AC Wired Wall Remote Controller
Product Dimensions (W x H x D)	136 x 120 x 16 mm
Cable Length	100 cm (1 Meter)
Net Weight	235 g
Connector Type	Polarized Multi-Pin PCB Header
Color / Finish	White Housing with Dark Grey Display Screen
Country of Origin	India
Package Contents	1x Wired Remote Controller with Cable
