LG Air Conditioner Wall Air Conditioner Remote Controller (include Holder)

The LG Air Conditioner Remote Controller Assembly (Part Number: AKB73315616) is an authentic original equipment manufacturer (OEM) replacement handheld wireless controller designed for LG wall-mounted split-system air conditioners, Dual Inverter units, and models equipped with Plasma air filtration systems. Communicating via long-range infrared (IR) signals, this full-featured remote provides complete control over operating modes (Cool, Heat, Fan, Dry, Auto), precise temperature setpoints, multi-speed fan control, dual-axis swing louvers, vane angle calibration, Plasma air purification, and timer scheduling. It includes a custom-fit wall-mounting cradle to keep the handset organized and prevent misplacement.

Key Features

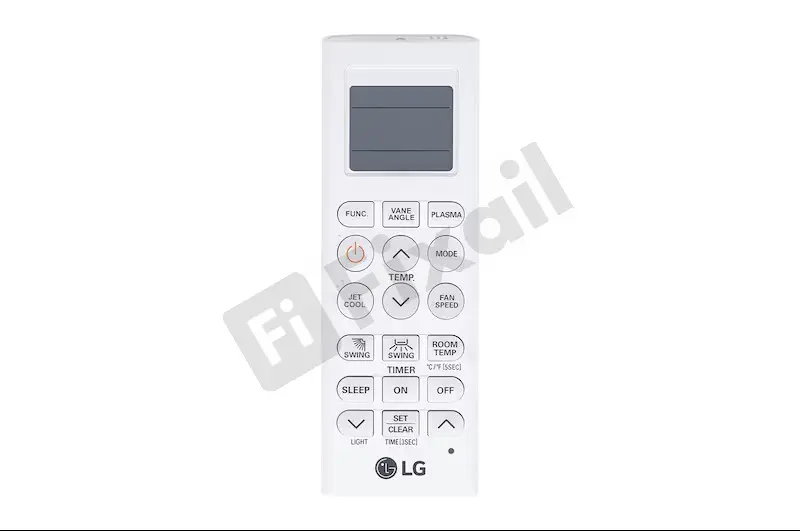

• Clear Digital LCD Display: Shows active temperature settings, operation modes, fan speed levels, timer schedules, and active functions at a glance.

• Specialized Feature Keypad: Tactile silicone push-buttons include dedicated controls for Power (red accent), Plasma Air Purification, Vane Angle, Function (Func), Mode, Fan Speed, Jet Cool, Dual Air Swing, Sleep Timer, Light Off, and Room Temperature display.

• Dedicated Wall-Mount Cradle: Comes complete with an authentic wall-mount holder (60 x 60 x 32 mm) for neat and convenient wall storage.

• Pre-Programmed Plug-and-Play Setup: Requires no complex code programming or pairing procedures—simply insert standard AAA batteries to operate compatible LG split AC units immediately.

Benefits

• Solves lost, cracked, or liquid-damaged remotes, blank LCD screens, unresponsive keypads, and weak infrared signal transmission.

• Restores full access to advanced features like Plasma air filtration, Vane Angle customization, Jet Cool rapid chilling, and night display light shutoff.

• Direct OEM replacement ensures 100% factory signal frequency and code compatibility with LG indoor receiver units.

Applications

Designed specifically for select LG wall-mounted split air conditioner and Dual Inverter models requiring remote part number AKB73315616.

What's Included

• 1 x Genuine LG AC Remote Controller (AKB73315616)

• 1 x Wall-Mount Remote Cradle / Holder

Usage Instructions

1. Slide open the rear battery compartment cover on the back of the remote controller.

2. Insert two fresh 1.5V AAA alkaline batteries (not included), ensuring correct positive (+) and negative (-) polarity alignment.

3. Replace the battery cover securely.

4. Point the remote directly at the indoor air conditioner unit's IR receiver window and press the Power button to test operation.

5. (Optional) Mount the included wall holder in a convenient location using appropriate mounting screws.

Safety Instructions

• Do not mix old and new batteries, and avoid combining different battery chemistries (e.g., standard zinc-carbon with alkaline).

• Remove the batteries if the remote controller will not be used for an extended period to prevent chemical leakage and terminal corrosion.

Care Instructions

• Clean the surface and screen with a soft, dry microfiber cloth; keep away from high humidity, water spills, and direct heat sources.

Technical Specifications

Attribute	Specification
Brand	LG
Model / Part Number	AKB73315616
Component Type	Air Conditioner Handheld Infrared (IR) Remote Controller
Included Accessories	Wall-Mount Cradle / Holder
Remote Dimensions (W x H x D)	50 x 153 x 25 mm
Holder Dimensions (W x H x D)	60 x 60 x 32 mm
Net Weight	Remote: 89 g | Holder: 16 g (Total: 105 g)
Power Requirements	2 x 1.5V AAA Batteries (Sold Separately)
Color / Finish	White Housing with Red Accent Power Button
Country of Origin	India
Package Contents	1x Remote Controller, 1x Wall Holder
