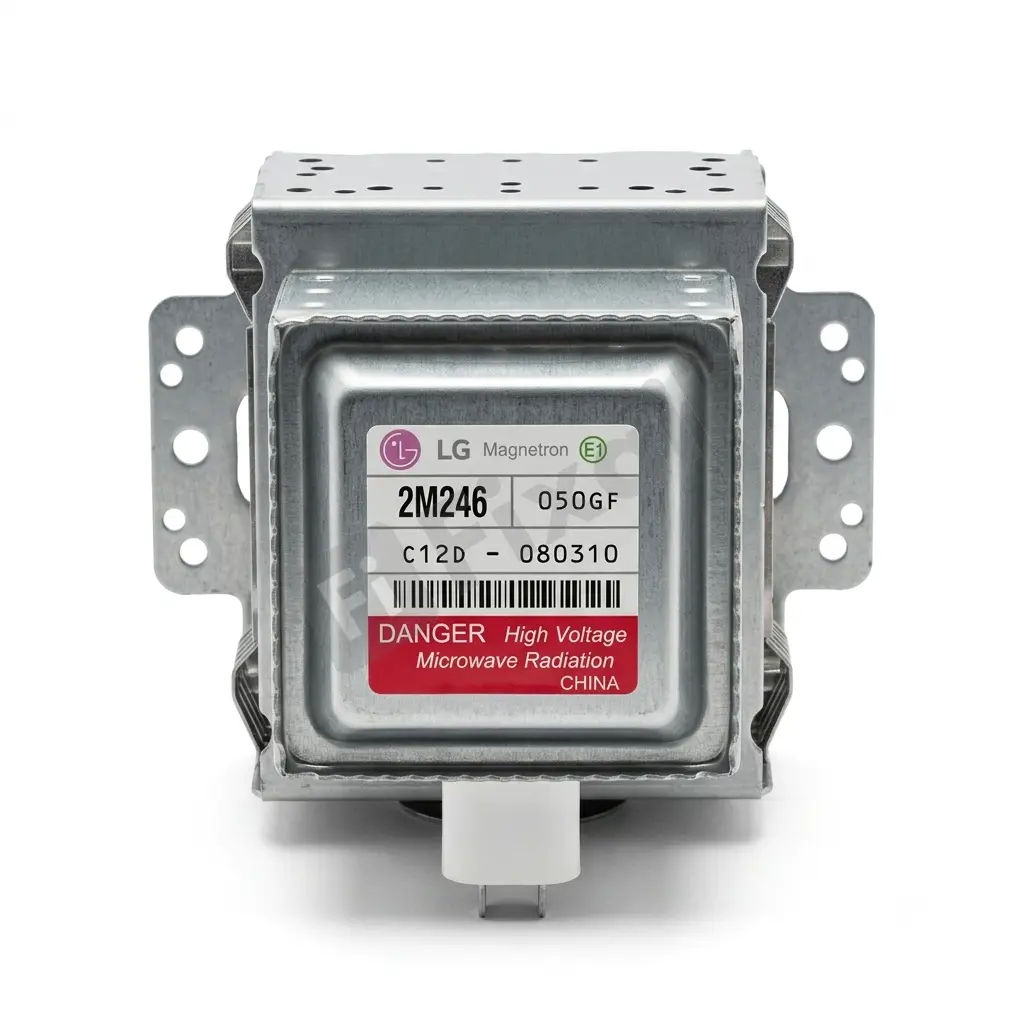

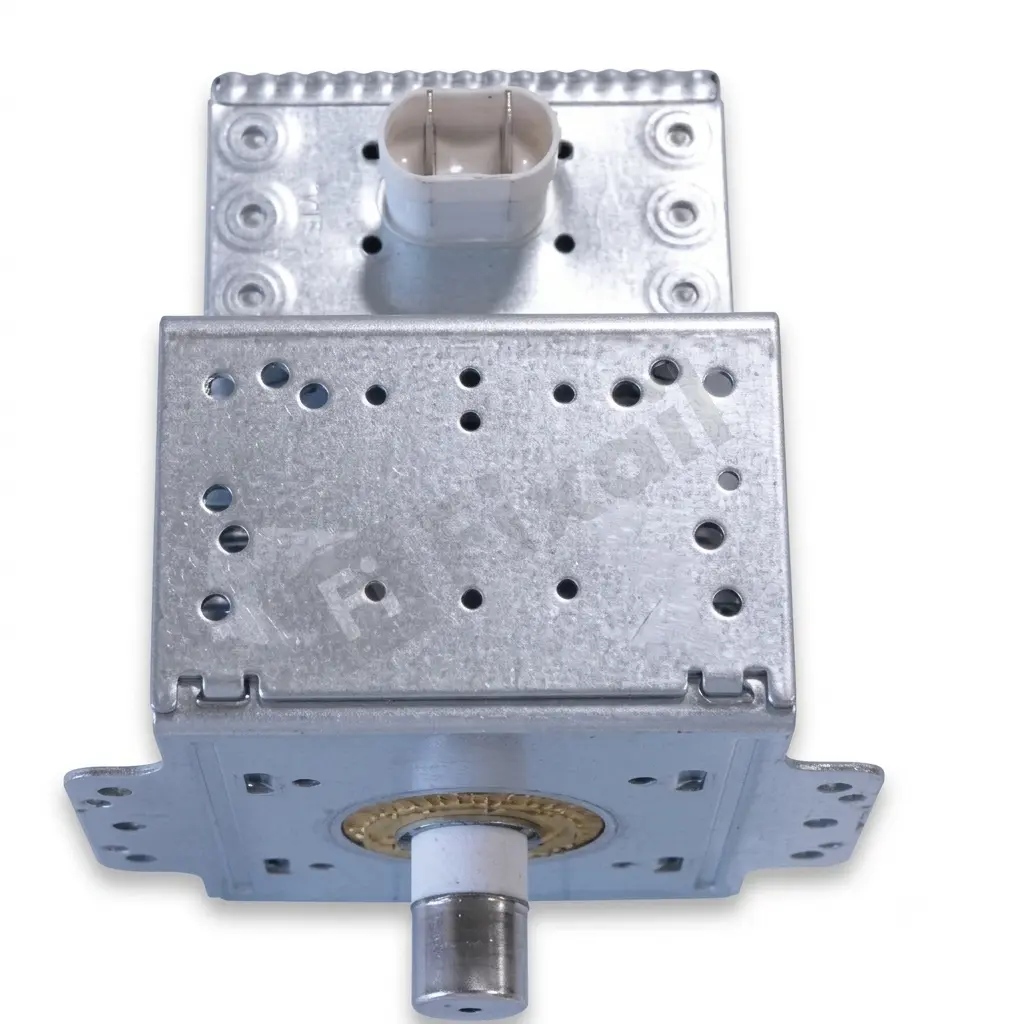

LG Microwave Oven Magnetron

The LG Microwave Magnetron (Part Number: 6324W1A001L) is an authentic original equipment manufacturer (OEM) replacement component designed for LG microwave ovens and over-the-range units. Operating as the primary heating engine inside the appliance, this high-voltage vacuum tube converts electrical energy into high-frequency electromagnetic radiation (microwaves), directing it through the wave-guide to cook and reheat food.

Key Features

• Genuine OEM Precision: Manufactured directly to LG’s original factory specifications to ensure exact mounting hole alignment, antenna placement, and terminal fitment.

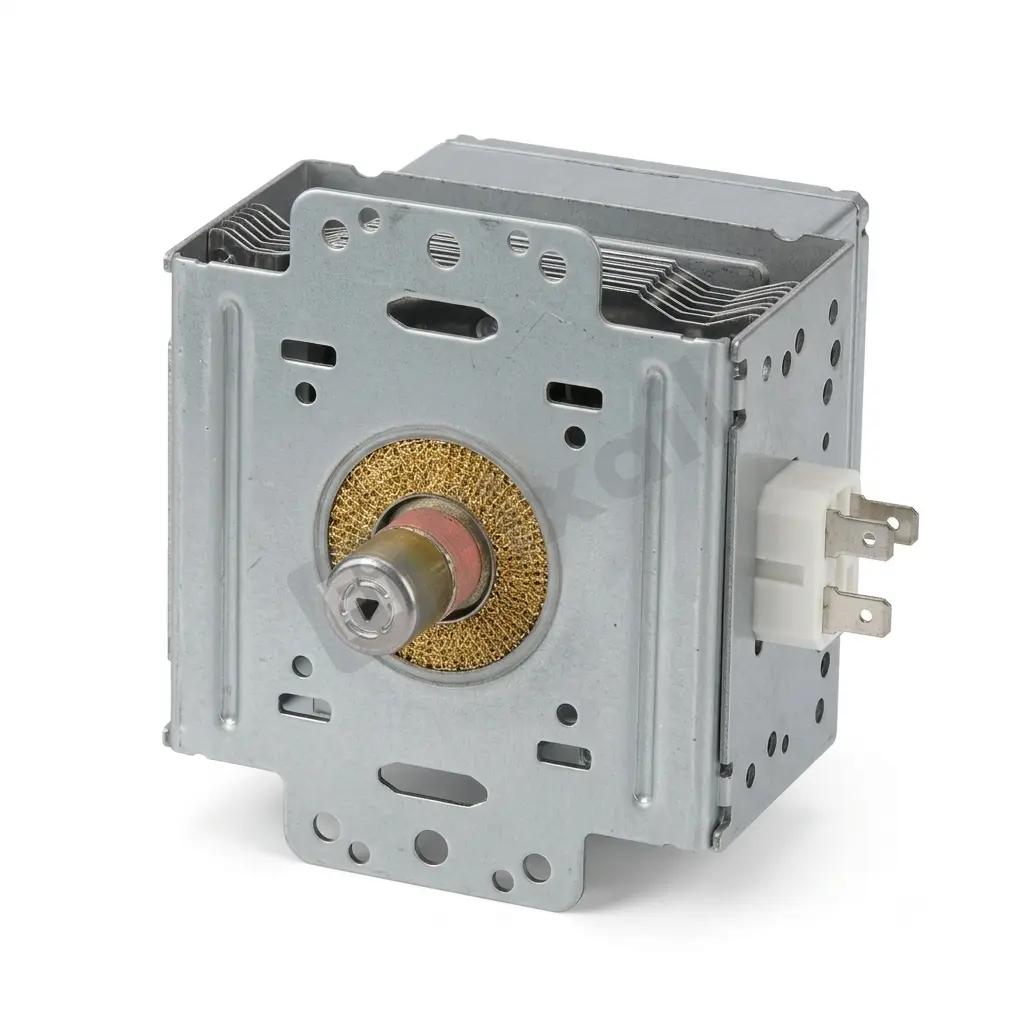

• Integrated RF Shielding Mesh Gasket: Features a pre-installed metallic mesh ring around the antenna dome to prevent microwave radiation leakage into the chassis compartment.

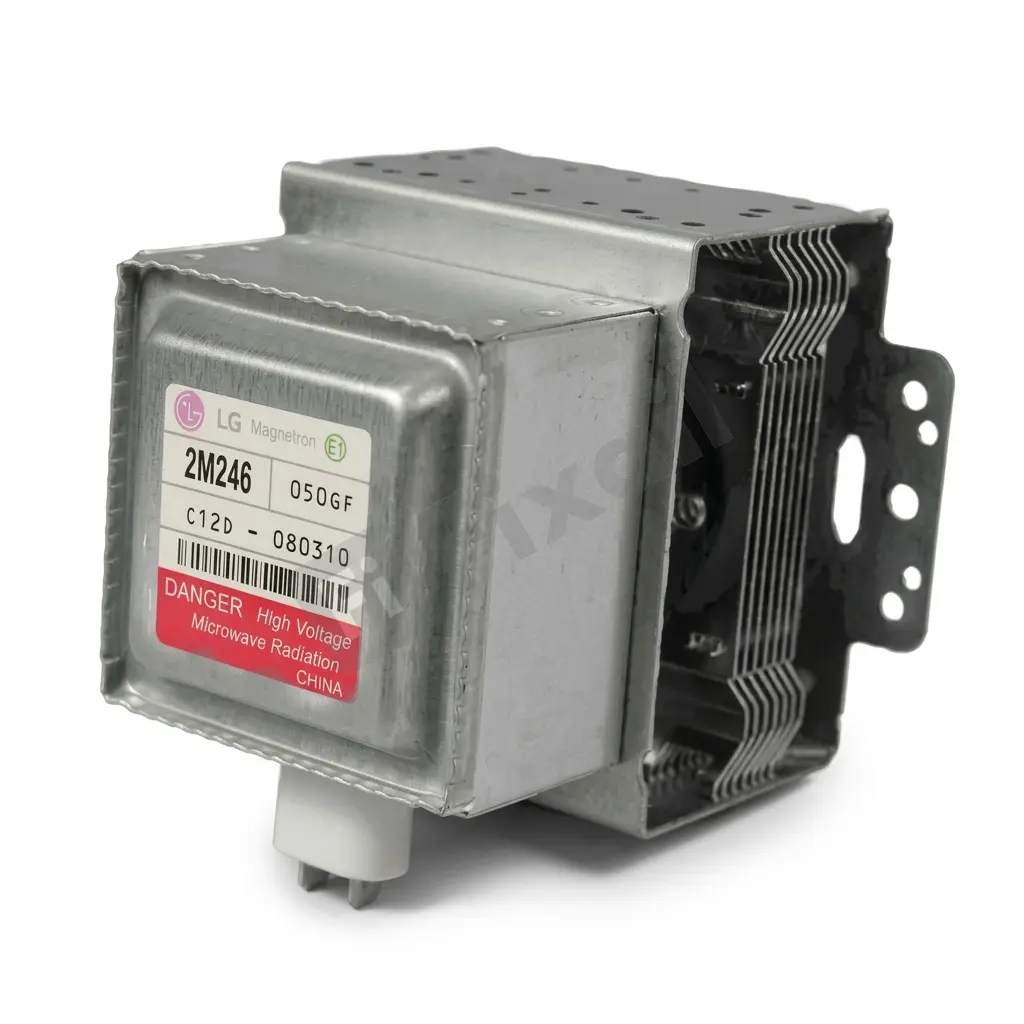

• Heavy-Duty Heat Dissipation: Built with multi-layer aluminum cooling fins designed to withstand high thermal loads during extended cooking cycles.

Benefits

• Solves non-heating microwave issues where the timer counts down, internal light works, and plate turns, but food remains cold.

• Replaces shorted, burned, or weak magnetron tubes to restore original factory heating speeds.

• Direct OEM replacement guarantees safety compliance and proper wave-guide coupling.

Applications

Designed specifically for select LG microwave oven models requiring part number 6324W1A001L.

What's Included

• 1 x Genuine LG Microwave Magnetron Assembly (6324W1A001L)

Usage Instructions

1. DANGER: Unplug the microwave oven from the power outlet and allow high-voltage components to sit.

2. Wear work gloves to protect your hands from sharp metal chassis edges.

3. Remove the screws securing the outer metal cabinet shell and lift off the cover.

4. CRITICAL: High-voltage capacitors carry dangerous electrical charges even when unplugged. Safely discharge the capacitor using an insulated screwdriver across terminal posts to the metal chassis.

5. Disconnect the high-voltage wire harness plugs attached to the magnetron terminals.

6. Unscrew the mounting bolts holding the old magnetron to the wave-guide flange.

7. Align the new LG 6324W1A001L magnetron (ensuring the RF mesh gasket is seated properly), tighten mounting screws, reconnect terminal plugs, reassemble the cabinet shell, and test heating.

Safety Instructions

• LETHAL VOLTAGE WARNING: High-voltage microwave circuitry carries dangerous electrical potential. Installation should ideally be performed by a qualified appliance service professional.

• Always disconnect main electrical power before servicing and wear protective work gloves.

• Never operate the microwave with its outer cabinet cover removed or with a damaged RF mesh gasket.

Care Instructions

• Ensure cooling airflow pathways and vents remain clean and free of dust and grease buildup for optimal heat dissipation.
